Data models & schemas

We'll create two simple databases with a relation quite similar to those described in the Notion docs. We'll have a database for customers and one for items, which customers can purchase.

Let's first initialize a Notion session:

import ultimate_notion as uno

notion = uno.Session.get_or_create()

Declarative way of defining a schema

We start by defining the schema for our items in a truly Pythonic way. The schema should have three properties: the title property Name for the name of an item (e.g., "Jeans"), a size property Size, and of course a Price property in US Dollars. The size of a piece of clothing can be chosen from the options S, M, and L. We can directly translate this schema into Python code:

class Size(uno.OptionNS):
    """Namespace for the select options of our various sizes"""
    S = uno.Option(name='S', color=uno.Color.GREEN)
    M = uno.Option(name='M', color=uno.Color.YELLOW)
    L = uno.Option(name='L', color=uno.Color.RED)


class Item(uno.Schema, db_title='Item DB'):
    """Database of all the items we sell"""
    name = uno.PropType.Title('Name')
    size = uno.PropType.Select('Size', options=Size)
    price = uno.PropType.Number('Price', format=uno.NumberFormat.DOLLAR)

The db_title parameter in the schema definition is optional but highly recommended. When provided, it sets the default title for the database when calling create_db() without an explicit title argument. Also it allows you to relate your schema to an existing database.

Alternatively, you can specify a db_id parameter to bind the schema to an existing database:

class Item(uno.Schema, db_id='550e8400-e29b-41d4-a716-446655440000'):
    """Database of all the items we sell"""
    name = uno.PropType.Title('Name')
    size = uno.PropType.Select('Size', options=Size)
    price = uno.PropType.Number('Price', format=uno.NumberFormat.DOLLAR)

When db_id is provided, you can easily bind the schema to the existing database using bind_db() without having to manually search for it.If neither db_id nor db_title is provided, you'll need to pass a database object explicitly to bind_db() or provide a title when creating the database.

Since a database needs to be a block within a page, we assume there is a page called Tests that is connected with this integration. We retrieve the object of this page and create the database with the page as parent:

root_page = notion.search_page('Tests', exact=True).item()
item_db = notion.create_db(parent=root_page, schema=Item)

Now we create a database for our customers and define a one-way Relation to the items:

class Customer(uno.Schema, db_title='Customer DB'):
    """Database of all our beloved customers"""
    name = uno.PropType.Title('Name')
    purchases = uno.PropType.Relation('Items Purchased', schema=Item)

customer_db = notion.create_db(parent=root_page, schema=Customer)

Warning

To create a database that has a relation to another database, the target database must already exist. Thus, the order of creating databases from schemas is important.

All available database property types are provided by PropType, which is a namespace for the various property types defined in schema. Property types with the class variable allowed_at_creation set to False are currently not supported by the Notion API when creating a new database.

Programmatic way of defining a schema

Besides the recommended declarative approach to define a schema, you can also choose a more classical programmatic approach. The main difference is that we first create a database with a default schema and then start adding new properties (i.e., columns) to it.

employee_db = notion.create_db(parent=root_page)
employee_db.title = 'Employee DB'
employee_db.description = 'Database holding all our employees'

employee_db.schema['Salary'] = uno.PropType.Number()
employee_db.schema.hiring_date = uno.PropType.Date('Hiring Date')

options = [uno.Option(name='Junior', color=uno.Color.GREEN),
           uno.Option(name='Advanced', color=uno.Color.YELLOW),
           uno.Option(name='Senior', color=uno.Color.RED)]

employee_db.schema['Level'] = uno.PropType.Select(options=options)

As shown above, there are two ways to add new properties:

  1. Dictionary item assignment of a PropType to the schema
  2. Property assignment of a PropType to the schema

In the first case, a corresponding property salary of the schema will be created automatically.

This also allows us to perform schema evolution by changing and updating columns:

employee_db.schema['Salary'] = uno.PropType.Formula(
    formula='50000 + dateBetween(prop("Hiring Date"), now(), "years")*1000'
)
employee_db.schema['Level'].options = [
    *options,
    uno.Option(name='Partner', color=uno.Color.PINK)
]
employee_db.schema.hiring_date = uno.PropType.Text()
employee_db.schema.hiring_date.name = 'Hiring Date as String'
employee_db.schema['Hiring Date as String'].name = 'Hiring Date'
employee_db.schema.hiring_date.attr_name = 'hiring_date_as_str'
assert employee_db.schema.hiring_date_as_str == uno.PropType.Text()

This changes the salary property to a formula type, adds a partner level to the level property, changes the hiring date to a text type, and modifies its name. This is then followed by setting the name back using property access. It also shows how attr_name can be used to set the actual attribute name of the schema object to hiring_date_as_str.

Of course, we can also delete properties:

del employee_db.schema['Salary']
employee_db.schema.hiring_date_as_str.delete()

Again using both the dictionary and the property approach.

New database entries

Now that we have created those two databases, we can start filling them with entries either using the create_page method of the database object:

t_shirt = item_db.create_page(name='T-shirt', size=Size.L, price=17)
khaki_pants = item_db.create_page(name='Khaki pants', size=Size.M, price=25)
tank_top = item_db.create_page(name='Tank top', size=Size.S, price=15)

or we can also directly use the create method of the schema if the schema is already bound (e.g., by using bind_db) to a database:

lovelace = Customer.create(name='Ada Lovelace', purchases=[tank_top])
hertzfeld = Customer.create(name='Andy Herzfeld', purchases=[khaki_pants])
engelbart = Customer.create(name='Doug Engelbart', purchases=[khaki_pants, t_shirt])

Info

The keyword arguments are exactly the class variables from the page schemas Item and Customer above.

This is how our two databases item_db and customer_db look in the Notion UI right now:

Notion item database

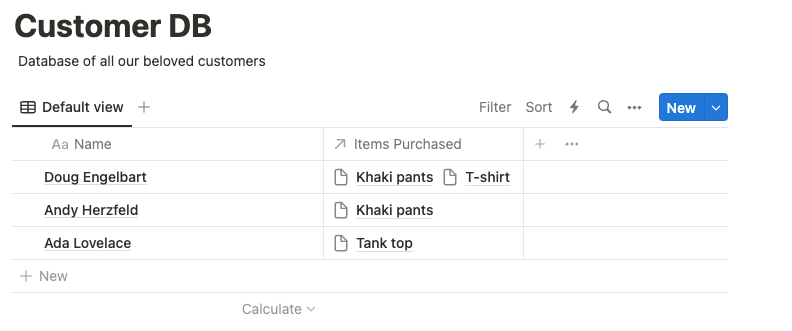

Notion customer database

Note

The description of the databases corresponds to the docstring of the schema classes Item and Customer.

Fast access to page properties

The properties of a page, defined by the properties of the database the page resides in, can be easily accessed using the .props namespace:

assert lovelace.props.name == 'Ada Lovelace'
assert engelbart.props.purchases == [khaki_pants, t_shirt]

This is especially useful when using a REPL with autocompletion like JupyterLab or IPython. As an alternative, bracket notation can also be used. This allows us to use the actual property names from the schema definition:

assert lovelace.props['Name'] == 'Ada Lovelace'
assert engelbart.props['Items Purchased'] == [khaki_pants, t_shirt]

Two-way & self relations

Notion also supports two-way relations and so does Ultimate Notion. Taking the same example as before, imagine that we also wanted to see directly which customers bought a specific item. In this case, the one-way relation Items Purchased from Customer needs to become a two-way relation. We can achieve this with a simple modification to both schemas:

class Item(uno.Schema, db_title='Item DB'):
    """Database of all the items we sell"""
    name = uno.PropType.Title('Name')
    size = uno.PropType.Select('Size', options=Size)
    price = uno.PropType.Number('Price', format=uno.NumberFormat.DOLLAR)
    bought_by = uno.PropType.Relation('Bought by')

class Customer(uno.Schema, db_title='Customer DB'):
    """Database of all our beloved customers"""
    name = uno.PropType.Title('Name')
    purchases = uno.PropType.Relation('Items Purchased', schema=Item, two_way_prop=Item.bought_by)

What happens here is that we first create a target relation property bought_by in Item by not specifying any other schema. Then in Customer, we define a two-way property by specifying not only the schema Item but also the property we want to synchronize with using the two_way_prop keyword.

Let's delete the old databases and recreate them with our updated schemas and a few items:

item_db.delete(), customer_db.delete()

item_db = notion.create_db(parent=root_page, schema=Item)
customer_db = notion.create_db(parent=root_page, schema=Customer)

t_shirt = item_db.create_page(name='T-shirt', size=Size.L, price=17)
lovelace = Customer.create(name='Ada Lovelace', purchases=[t_shirt])
hertzfeld = Customer.create(name='Andy Herzfeld', purchases=[t_shirt])

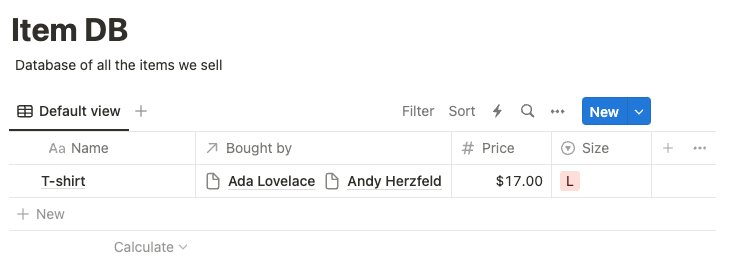

and take a look at the two-way relation within item_db:

Notion customer database with two-way relation

Assume now that we want to have a schema that references itself, for instance a simple task list where certain tasks can be subtasks of others:

class Task(uno.Schema, db_title='Task List'):
    """A really simple task list with subtasks"""
    task = uno.PropType.Title('Task')
    due_by = uno.PropType.Date('Due by')
    parent = uno.PropType.Relation('Parent Task', schema=uno.SelfRef)

task_db = notion.create_db(parent=root_page, schema=Task)

from datetime import datetime, timedelta

today = datetime.now()

clean_house = Task.create(
    task='Clean the house',
    due_by=today + timedelta(weeks=4)
)
vacuum_room = Task.create(
    task='Vacuum living room',
    due_by=today + timedelta(weeks=1),
    parent=clean_house
)
tidyup_kitchen = Task.create(
    task='Tidy up kitchen',
    due_by=today + timedelta(days=3),
    parent=clean_house
)

Warning

Due to a bug in the Notion API, it's not possible to have a two-way self-referencing relation right now. Creating a two-way relation leads to the creation of a one-way relation. We check for that and fail.
